Dectra System

Redefining Efficiency

An innovative mounting system combined with a precise speed sensor – all essential components are integrated into a compact system (traffic sensor, reinforced concrete foundation with a foldable telescopic lightweight mast, and an energy system including photovoltaics). The pre-assembled design simplifies logistics, speeds up installation, and ensures that no components are forgotten. Setup and sensor alignment take place at a comfortable working height. The foldable design sets new standards in efficiency and speed.

Das Dectra System besteht aus:

Dectra Radar
  • Speed Sensor

Temilo Flex
  • Reinforced Concrete Foundation with a compact design
  • Telescopic Mast (up to 6 meters) Energy System with buffer storage and solar panel (including monitoring unit)

Enertra Eco
  • Energy Buffer Storage (with AGM batteries) including a solar module for self-sufficient power supply. The solar module can be rotated 360° on the mast, allowing optimal alignment with the sun based on location requirements.
Dimensions
  • Mast Extended: Up to 6 meters
  • Foundation (L × W × H): 1150 mm × 800 mm × 400 mm
  • Weight: < 1.000 kg

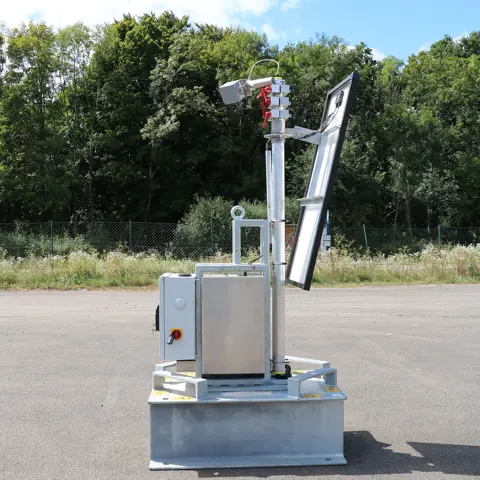

Assembly Sketch Temilo Flex

Transportstellung 1. Transport position
Geklappt zur Montage 2. Folded for assembly
Gekappt & teleskopiert zur Justierung 3. Cut & telescoped for adjustmen
Vollständig aufgebaut 4. Fully assembled
Installation
  • Personnel Required: 1 crane operator + 1 assembly assistant
  • Installation Time: 10 - 15 minutes (excluding transport and setup time)

AddOns – Flexible for Any Deployment Scenario

The DECTRA product family enhances the versatility of the TRACO and DECTRA system with sensors for traffic data collection, camera systems and CB radio warning transmitters.

Die Produkte der Dectra Familie bieten zusätzliche Lösungen für die Steuerung und Überwachung von Verkehrssituationen.

Radar

Dectra Radar

Radar
  • Speed Detection
  • Microprocessor-controlled radar detector for motion- and speed-dependent switching applications
  • Counting Mode for vehicle counting
  • Control of SWA switching
  • Traffic Data Collection for analysis and processing
  • Power Supply via solar panel and buffer storage
  • Monitoring via SAFETRACX



Cam

Dectra Cam
Dectra Cam
  • Remote monitoring of accident hotspots
  • Remote monitoring of traffic situations
  • IP camera set with two built-in sensor modules
  • Interfaces: Ethernet 10/100 (RJ45), Bus, USB; IO and RS232
  • Power supply via TRACO System
  • Day and night vision mode



Radio

Dectra Radio
Dectra Radio
  • Warning for road users, especially trucks, about hazardous areas
  • Antennas on pre-warning flashing device, linked to the TRACO System
  • Antenna protection during transport by folding mechanism
  • Hazard warnings available in eight languages
  • Announcement range: 250–300 m
Traco Sign

Modern LED variable message signs in RGB

Traco Solution

The comprehensive solution for your mobile traffic jam warning system
